手持滚刷是应对各类光伏阵列局部污染或精细化清洁的得力工具。然而，其核心传动结构的可靠性，长久以来是影响用户体验与总体拥有成本的关键。许多传统设备所依赖的“电机+链条”传动方式，在实际高强度、长时间的野外运维中，逐渐暴露出其设计上的固有局限。

传统链条传动的双重桎梏

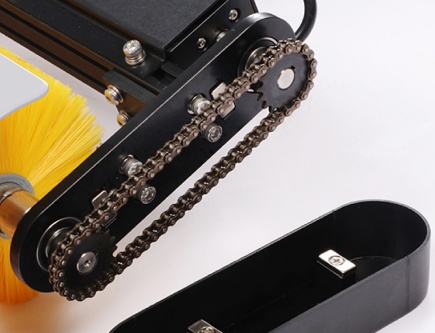

1.  断裂风险，运维中断的隐患：多数滚刷采用单电机通过链条驱动刷头旋转。在长期高速、高负荷的作业环境下，链条及其连接件承受持续应力，极易发生松动、拉伸，甚至突然断裂。这种机械故障不仅导致清洁工作中断，更因维修不便而直接影响电站运维计划，总体故障率居高不下。

2.  噪音与磨损，持续的维护负担：链条传动并非一个封闭洁净的系统。它需要操作者定期添加润滑油以维持正常运转。一旦润滑不足或油脂干涸，巨大的摩擦噪音便会随之产生。更严重的是，这会加速链条与链轮的机械磨损，形成“润滑不足→磨损加剧→故障风险升高”的恶性循环，为日常维护增添了不必要的负担。

喷水象的革新方案：内置电机，直驱革命

为从根本上解决上述问题，喷水象的研发团队对滚刷的动力架构进行了重新构思。我们果断摒弃了复杂的中间传动环节，推出了革命性的电机直驱集成刷头：

*   精简即是可靠：我们将高性能电机直接、精密地内置于滚刷的旋转刷头中心。动力输出轴与刷头承载结构融为一体，实现了电机的动力零损耗、零延迟地直接传递至刷毛。

*   取消链条，根除痛点：这一设计彻底取消了传统的链条、链轮、张紧器等一整套传动机构。从此，设备中不再存在可能松动、断裂的机械链接件，也从源头消除了因润滑问题导致的噪音与磨损。

改进后的设计如下图：

实测验证：更可靠，更安静，更省心

该直驱设计已通过严格的实验室耐久测试与野外实地工况验证。结果显示：

*   可靠性飞跃：由于消除了链条断裂这一主要故障模式，设备的平均无故障工作时间大幅延长，显著提升了运维工作的连续性和可预测性。

*   运行极致静音：直驱结构运行平稳，噪音水平显著降低，改善了劳动者的工作环境。

*   维护近乎为零：用户无需再关心链条润滑，日常维护工作量被极大简化，真正实现了“放下即用，拿起即走”的便捷。

这项创新是喷水象光伏智能运维理念的微观体现，它让太阳能电站维护工作变得更加简单、可靠。

关于喷水象 (WaterSprayElephant)

喷水象是一家专注于光伏组件智能清洁技术研发与制造的科技企业。我们通过持续的技术创新，提供能显著提升光伏电站发电效率的解决方案，致力于成为全球光伏运维领域的效能革新者。

我们的产品矩阵涵盖从 手持式清洁刷、履带式清洁机器人 到 卧式清洁机器人 的全场景 光伏组件清洁系统。无论是用于沙漠电站太阳能清洁的耐磨损型号，还是适用于沿海地区的防腐蚀设计，我们都致力于提供定制化太阳能清洁解决方案，以帮助全球客户提高太阳能产量并降低太阳能运维成本。

我们的使命是“让光伏清洁劳动者更轻松”。

我们的愿景是成为提高光伏发电效率的技术引领者。

A Revolutionary Shift from Chain Drive to Direct Drive: How WaterSprayElephant Redefines the Reliability of Handheld PV Cleaning Brushes with Built-in Motor Technology

Abstract: In photovoltaic module cleaning operations, the transmission system of a handheld cleaning brush directly determines the equipment's durability and maintenance costs. Traditional chain drive systems conceal risks of failure and demand frequent upkeep. Embracing an ethos of engineering innovation, WaterSprayElephant has completely abandoned the chain, pioneering a direct-drive solution that integrates the motor into the heart of the brush head. This not only eliminates the inherent failure points of chains but also elevates reliability, quiet operation, and low maintenance to an entirely new level, delivering on the promise of "making O&M easier" through solid mechanical innovation.

The handheld brush is a vital tool for addressing localized soiling or performing detailed cleaning across various PV arrays. However, the reliability of its core transmission mechanism has long been a critical factor affecting user experience and total cost of ownership. The "motor + chain" drive system relied upon by many traditional devices reveals its inherent design limitations under the demanding conditions of high-intensity, prolonged field operations.

The Dual Constraints of Traditional Chain Drive Systems

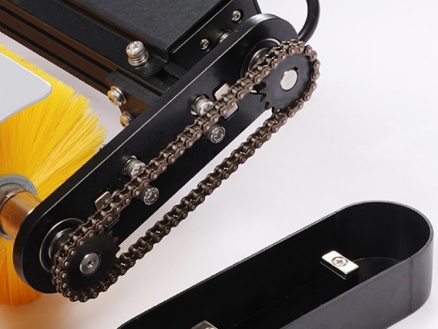

1.Risk of Breakage, A Hidden Threat to Operations: Most brushes use a single motor to drive the brush head rotation via a chain. Under prolonged, high-speed, and high-load operating conditions, the chain and its connectors endure continuous stress, making them prone to loosening, stretching, and even sudden breakage. This type of mechanical failure not only halts cleaning work but, due to inconvenient repairs, directly impacts a plant's maintenance schedule, keeping overall failure rates undesirably high.

2.Noise, Wear, and the Constant Burden of Maintenance: Chain drives are not sealed, clean systems. They require operators to regularly apply lubricant to function properly. When lubrication is insufficient or the grease dries out, significant friction noise occurs. More critically, this accelerates the mechanical wear of the chain and sprockets, creating a vicious cycle of "inadequate lubrication → increased wear → higher risk of failure," adding an unnecessary burden to routine maintenance.

WaterSprayElephant's Innovative Solution: The Built-in Motor, A Direct-Drive Revolution

To solve these issues at their root, WaterSprayElephant's R&D team reimagined the power architecture of the cleaning brush. We decisively moved away from complex intermediate transmission components, introducing the revolutionary motor-direct-drive integrated brush head:

*   Simplicity Equals Reliability: We integrate a high-performance motor directly and precisely into the center of the rotating brush head. The motor's output shaft is unified with the brush head's load-bearing structure, enabling zero-loss, zero-lag direct power transmission from the motor to the bristles.

*   Eliminating the Chain, Eradicating the Pain Points: This design completely does away with the traditional assembly of chains, sprockets, tensioners, and other transmission components. The equipment no longer contains mechanical links that can loosen or break, and it eradicates at the source the noise and wear caused by lubrication issues.

The improved design is shown in the following figure:

Field Verification: More Reliable, Quieter, and Easier to Maintain

This direct-drive design has passed rigorous laboratory endurance tests and field validation under real operating conditions. Results show:

*   A Leap in Reliability: By eliminating chain breakage as a primary failure mode, the equipment's mean time between failures (MTBF) is significantly extended, greatly enhancing the continuity and predictability of maintenance work.

*   Exceptionally Quiet Operation: The direct-drive structure operates smoothly, with markedly reduced noise levels, improving the worker's environment.

*   Near-Zero Maintenance: Users no longer need to worry about chain lubrication, drastically simplifying daily maintenance and truly achieving the convenience of "ready to use, ready to go."

This innovation is a microcosm of WaterSprayElephant's philosophy of smart O&M for photovoltaic systems, making solar farm maintenance simpler and more reliable.

About WaterSprayElephant

WaterSprayElephant is a technology enterprise dedicated to the R&D and manufacturing of intelligent cleaning solutions for PV modules. Through continuous technological innovation, we provide solutions that significantly enhance the power generation efficiency of PV power plants, striving to become a global efficiency innovator in the PV O&M field.

Our product matrix covers full-scenario PV module cleaning systems, from handheld cleaning brushes and tracked cleaning robots to horizontal cleaning robots. Whether it's a wear-resistant model for solar cleaning in desert plants or an anti-corrosion design for coastal areas, we are committed to providing customized solar cleaning solutions to help our global clients increase solar energy yield and reduce solar O&M costs.

Our Mission is to "Make PV Cleaning Labor Easier."

Our Vision is to become the technology leader in enhancing photovoltaic power generation efficiency.
